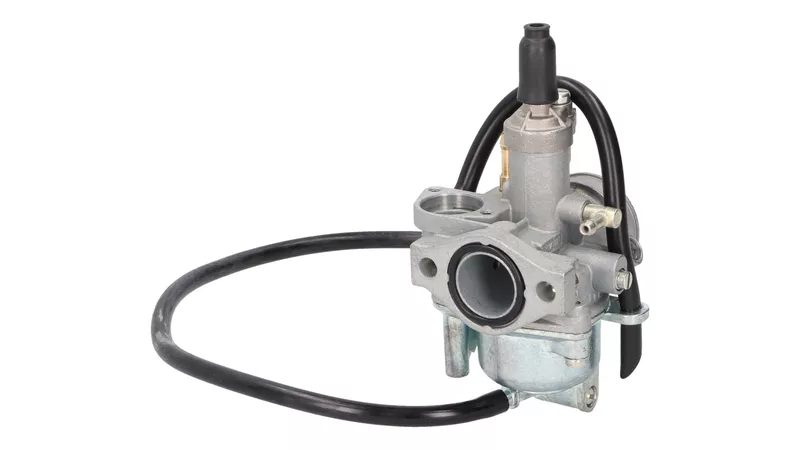

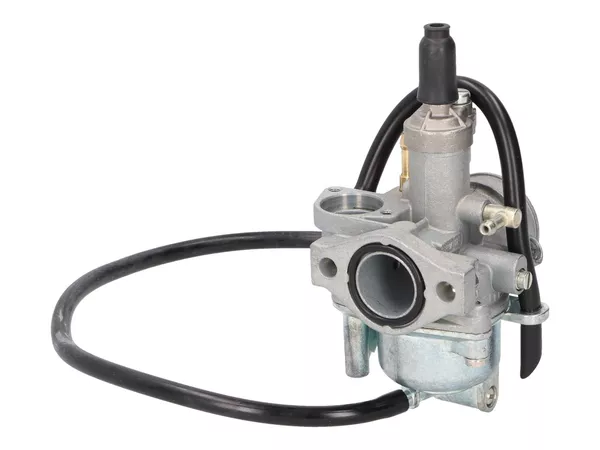

Carburetor Dell’Orto d=17.5mm PHVA Honda X8R

PHVA carburetor 17.5 for Kymco and HondaCarburetor Dell’Orto 17,5 mm PHVA US for 50cc scooters, motorcycles and mopeds.

The main jet is size 90. We recommend ordering an additional carburetor jet (D. 6mm) to adjust the carburetor setting perfectly to the setup.

This 17.5 carburetor with manual or e-choke was specially developed for Honda and Kymco scooters, but can also be used on other scooters, motorcycles or mopeds.

Technical data PHVA carburetor 17.5 Dellorto USCarburetor 17 5 mm PHVA US from Dellorto with clamping flangeMain jet: 90 (6mm jet)Idle jet: 35Needle A – 27Emulsion tube GNCarburetor diameter: 17.5 mmIntake manifold connection: 24 mmAir filter connection: 35 mmIntended for manual choke with cable or buttonFor e-chokeWithout vacuum portWithout preheatingCarburetor cover: StraightReference Dellorto 01438Note: You should check the color of the spark plug to prevent damage to the engine.
