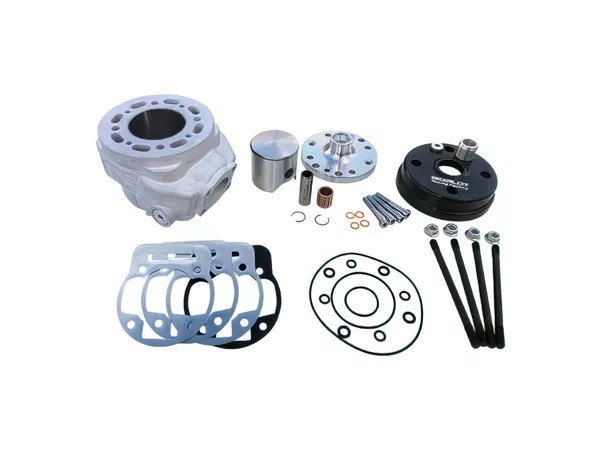

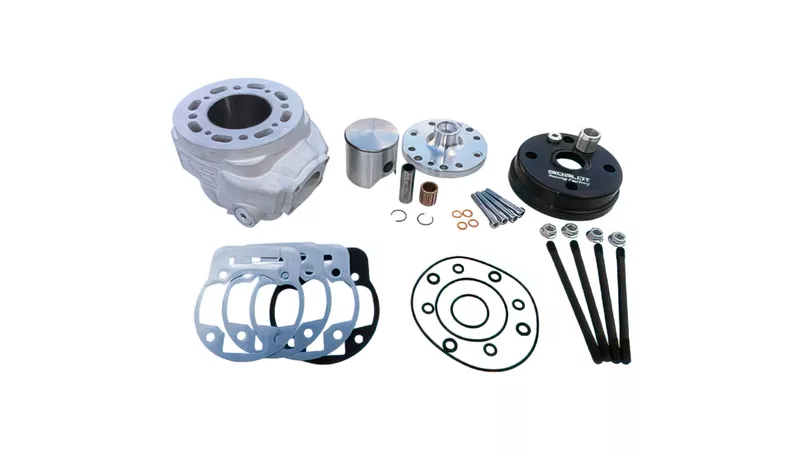

Cylinder Kit Bidalot Racing Factory WR 90cc Derbi Euro3

Bidalot 90cc Racing Cylinder Derbi Euro 3French tuning specialist Bidalot has made it their mission to make the most powerful tuning parts on the market. Their latest development: the Bidalot Cylinder Racing Factory WR 90cc for Derbi Euro 3.

Performance Bidalot RF-WRThe Racing Factory RF-WR kits are built for ultimate speed and optimum take-offs, and consequently fulfilled their potential by setting not 1, but 2 new world records during Speed Week on the Bonneville Salt Flats Speedway (USA) in 2016.

Design Bidalot RFWR Cylinder kitBidalot reworked and improved their already powerful Racing Factory kits. Bore diameter is 50.5mm now, and to match the new dimensions, the cylinder features a 7 transfer port layout; the bridged exhaust port is supported and relieved by boost ports. The 3D CNC-machined cooling system provides optimum cooling and operational stability.

The cylinder head is made of HQ aluminum (7075), the cylinder head cover is also CNC-machined and comes with a stunning looking matte black finish and Bidalot logo; it has an M10x1.00 opening for a temperature sensor and comes with a small plug to close it for use without sensor.

The cylinder is meant to be used with a 4-hole exhaust flange, but can be used with a regular 2-hole flange as well (50mm spacing).

Technical Specifications Bidalot RF90WRNikasil-plated aluminium cylinder7 transfer ports – bridged exhaust port + boost portshypereutectic piston d=50.5mmpiston ring 50.5x1mmsmall end bearing 13x17x17,5mmstroke 44.9mm – connecting rod 90mm
